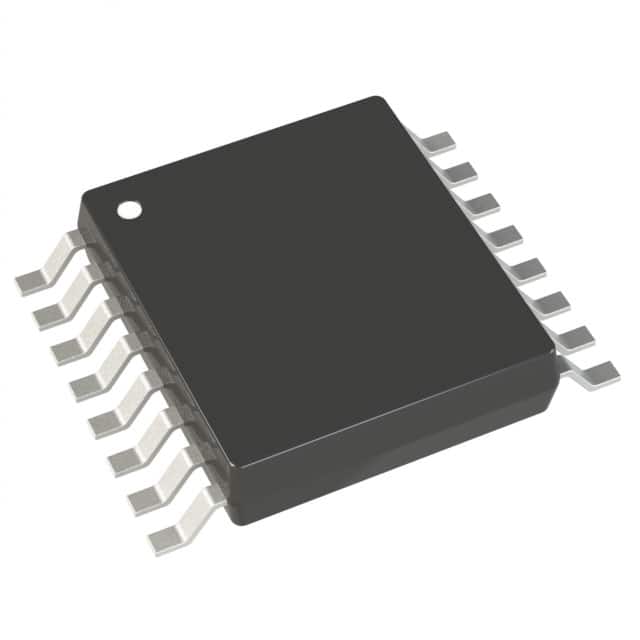

ADG1608BRUZ-REEL7

Manufacturer Part Number: ADG1608BRUZ-REEL7	Manufacturer / Brand: Analog Devices Inc.
Part of Description: 1 Circuit IC Switch 8:1 4.5Ohm 16-TSSOP	Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS	Datasheets: ADG1608BRUZ-REEL7 Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

Product parameters

Manufacturer	Analog Devices Inc.
Manufacturer Standard Lead Time	13 Weeks
Package	Tape & Reel (TR), Cut Tape (CT)
Description	IC MUX 8:1 4.5OHM 16TSSOP
Product Status	Active
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	4.5Ohm
Channel-to-Channel Matching (ΔRon)	120mOhm
Voltage – Supply, Single (V+)	3.3V ~ 16V
Voltage – Supply, Dual (V±)	±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)	94ns, 93ns
-3db Bandwidth	40MHz
Charge Injection	29pC
Channel Capacitance (CS(off), CD(off))	19pF, 117pF
Current – Leakage (IS(off)) (Max)	100pA
Crosstalk	-64dB @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173″, 4.40mm Width)
Supplier Device Package	16-TSSOP

The ADG1608BRUZ-REEL7 facilitates the selection and routing of signals from eight different sources, offering flexibility in managing multiple input channels.

With an impressively low on-resistance of 4.5 ohms, this multiplexer ensures minimal signal distortion during the switching process.

The IC is designed to maintain signal integrity with minimal distortion or crosstalk. Its precise signal path ensures that the selected signals retain their accuracy.
