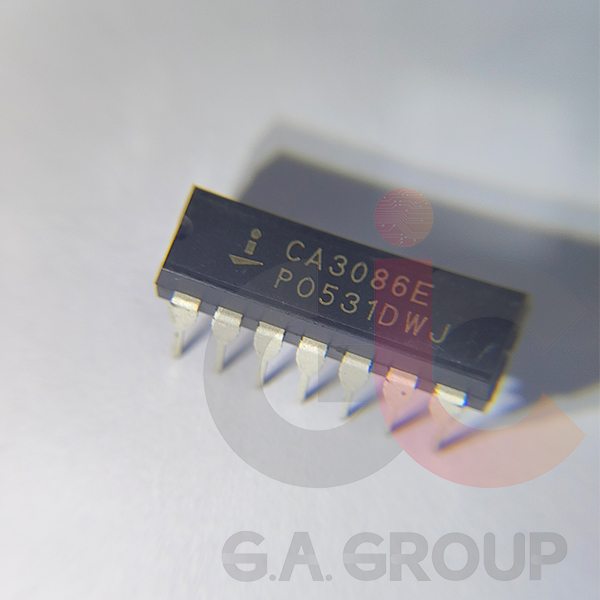

CA3086

Competitive Pricing

Part Number: CA3086	Manufacturer: Renesas Electronics
In-Stock: 55,015	DC: 23+
Description: Bipolar Transistors - BJT 550MHz 50mA	Datasheets: CA3086 Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

CA3086 Specifications

Product Type:	BJTs – Bipolar Transistors
Manufacturer:	Renesas Electronics
Mounting Style:	Through Hole
Transistor Polarity:	NPN
Configuration:	Penta
Maximum DC Collector Current:	50 mA
Collector- Emitter Voltage VCEO Max:	15 V
Collector- Base Voltage VCBO:	20 V
Emitter- Base Voltage VEBO:	5 V
Pd – Power Dissipation:	300 mW
Gain Bandwidth Product fT:	550 MHz
Minimum Operating Temperature:	– 55 ℃
Maximum Operating Temperature:	+ 125 ℃
DC Collector/Base Gain hfe Min:	40
Technology:	Si
Package / Case:	14-pin Dual In-line Package (DIP)

The CA3086 is an integrated circuit consisting of five NPN bipolar junction transistors (BJTs) in a single package. This IC is widely used in analog circuits, especially where matched transistors are required for current mirrors, differential amplifiers, or other applications needing closely matched transistor pairs.

Applications:
– Analog Signal Processing: Useful in creating differential amplifiers, gain stages, and oscillators.
– Current Mirrors: For circuits where precise current matching is required.
– Switching Circuits: Can be used in low-power switching applications.
– Temperature Compensation: Matched transistors allow for stable operation across a range of temperatures.
