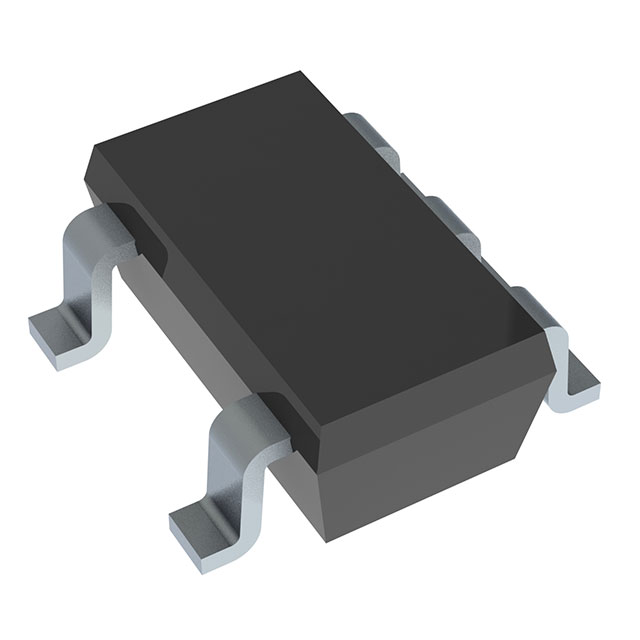

CAT823STDI-GT3

Manufacturer Part Number: CAT823STDI-GT3	Manufacturer / Brand: onsemi
Part of Description: Supervisor Push-Pull, Totem Pole 1 Channel TSOT-23-5	Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS	Datasheets: CAT823STDI-GT3 Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

Product parameters

Manufacturer	onsemi
Package	Tape & Reel (TR),Cut Tape (CT)
Description	IC SUPERVISOR 1 CHANNEL TSOT23-5
Product Status	Active
Manufacturer Standard Lead Time	28 Weeks
Operating Temperature	-40°C ~ 85°C (TA)
Type	Simple Reset/Power-On Reset
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package	TSOT-23-5
Base Product Number	CAT823
Output	Push-Pull, Totem Pole

Supervisory circuits like the CAT823STDI-GT3 are commonly used in microcontroller-based systems, ensuring that the microcontroller operates reliably and resets in case of faults or glitches.
The CAT823STDI-GT3 supports both active-low (MR) and active-high (WD) configurations. This flexibility allows designers to adapt the circuit to the requirements of the overall system architecture.
CAT823STDI-GT3 is a supervisory circuit with master reset and watchdog timer functions. Its active-low MR and active-high WD features, along with a 200 ms reset delay time, make it a reliable component for ensuring the stability and proper operation of microcontroller-based systems. The push-pull output configuration adds versatility to its application in various electronic designs.
