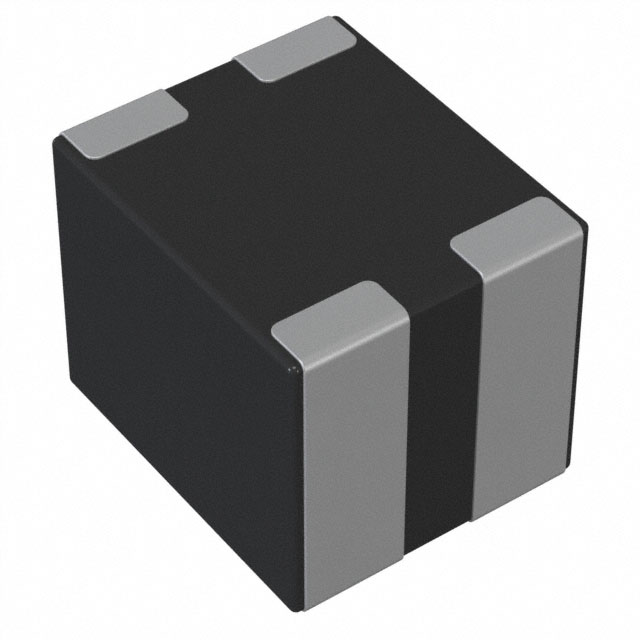

DLP11SN900HL2L
Manufacturer Part Number: DLP11SN900HL2L | Manufacturer / Brand: Murata Electronics |
Part of Description: 2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 150mA DCR 1.88Ohm | Lead Free Status / RoHS Status: Lead free / RoHS Compliant |
Ship From: HK/Shen Zhen | Shipment Way: DHL/Fedex/TNT/UPS |
Datasheets: | |
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed
|
DLP11SN900HL2L Parameters
Manufacturer | Murata Electronics |
Series | DLP11 |
Package | Tape & Reel (TR), Cut Tape (CT) |
Description | CMC 150MA 2LN 90 OHM SMD |
Product Status | Obsolete |
Operating Temperature | -40°C ~ 85°C |
Mounting Type | Surface Mount |
Package / Case | 0504 (1210 Metric), 4 Lead |
Base Product Number | DLP11SN |
The DLP11SN900HL2L is a chip ferrite bead manufactured by Murata Electronics. Here’s an expanded description of this electronic component:
- DLP Series: The DLP series by Murata Electronics consists of chip ferrite beads, known for their effective suppression of electromagnetic interference (EMI) and noise in electronic circuits.
- Application: The DLP11SN900HL2L is designed to be used in various electronic applications where the suppression of unwanted high-frequency noise is essential. Ferrite beads are commonly employed in power lines, signal lines, and other paths to prevent interference.
- Impedance Value: The “900” in the part number denotes the impedance value of the ferrite bead. This value is measured in ohms and represents the resistance offered by the bead to the flow of high-frequency noise.
- Tolerance: The exact tolerance of the impedance value can vary and is specified in the datasheet. The “H” in the part number might indicate a specific tolerance level, and referring to the datasheet is essential for accurate information.
- Size and Package: The “L2L” likely represents the size or package code of the ferrite bead. The specific dimensions and package type can be found in the datasheet.
- Surface Mount Technology (SMT): The “L” in the part number suggests that this ferrite bead is designed for surface mount applications, making it suitable for automated assembly processes.
- Automotive Grade: The use of “A” in the part number, such as “900HL2L,” suggests that the ferrite bead is designed to meet automotive industry standards, ensuring its reliability and performance in automotive electronic systems.
- RoHS Compliance: As with many modern electronic components, it is likely that the DLP11SN900HL2L is compliant with the Restriction of Hazardous Substances (RoHS) directive, indicating its adherence to environmental standards.
