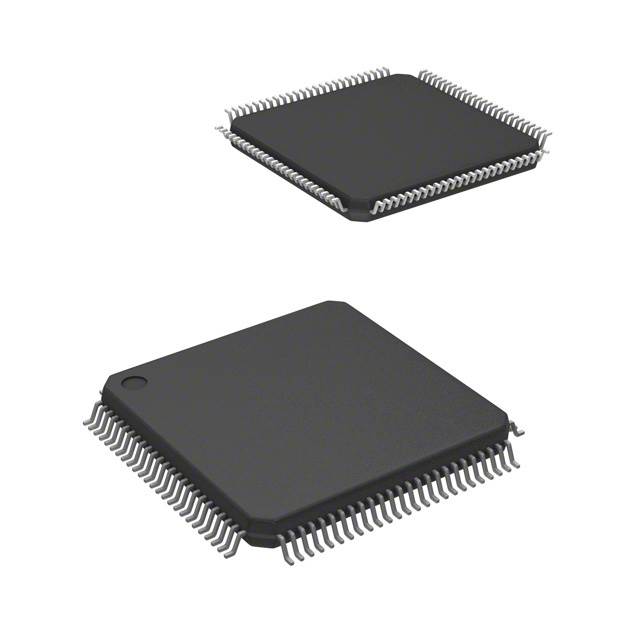

DSP56F803BU80E

Manufacturer Part Number: DSP56F803BU80E	Manufacturer / Brand: NXP Semiconductors
Part of Description: IC MCU 16BIT 64KB FLASH 100LQFP	Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Ship From: HK/Shen Zhen	Shipment Way: DHL/Fedex/TNT/UPS
Datasheets: DSP56F803BU80E Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

Product parameters

Manufacturer	NXP USA Inc.
Series	56F8xx
Package	Tray
Description	56800 56F8xx Microcontroller IC 16-Bit 80MHz 64KB (32K x 16) FLASH 100-LQFP (14×14)
Manufacturer Standard Lead Time	26 Weeks
Product Status	Active
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	100-LQFP
Supplier Device Package	100-LQFP (14×14)
Base Product Number	DSP56F803
Product Type:	DSP – Digital Signal Processors & Controllers

The DSP56F803BU80E, part of NXP’s DSP56300 core family, is a digital signal controller tailored for real-time control and digital signal processing applications. Equipped with a 16-bit CPU core featuring DSP extensions, it offers robust processing capabilities. This controller integrates various peripherals such as timers, communication ports, ADCs, and PWM outputs, making it suitable for a diverse array of applications, including industrial automation, automotive systems, and consumer electronics. Its powerful processing capabilities and integrated peripherals make it a versatile choice for tasks requiring efficient digital signal processing and control functionalities.
