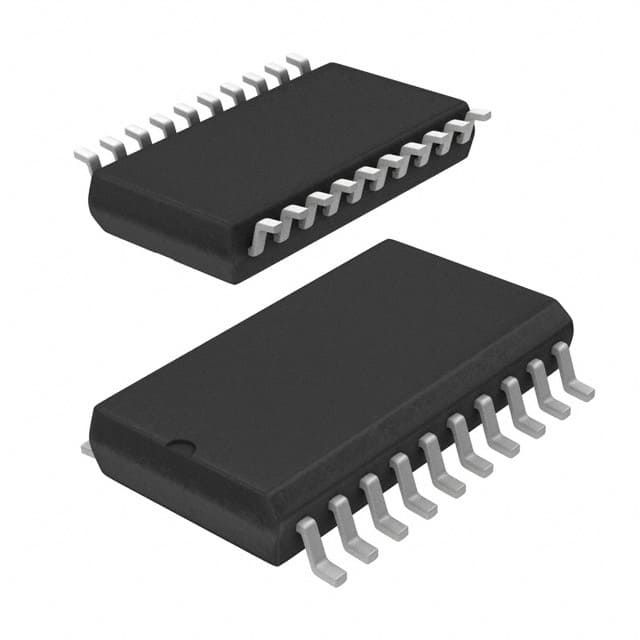

E-L9826TR

Manufacturer Part Number: E-L9826TR Manufacturer / Brand: STMicroelectronics
Part of Description: Power Switch/Driver 1:8 N-Channel 450mA 20-SO Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer STMicroelectronics
Description IC PWR DRIVER N-CHANNEL 1:8 20SO
Package Tape & Reel (TR), Cut Tape (CT)
Product Status Active
Mounting Type Surface Mount
Operating Temperature -40°C ~ 150°C (TJ)
Package / Case 20-SOIC (0.295″, 7.50mm Width)
Supplier Device Package 20-SO
Base Product Number E-L9826
Manufacturer Standard Lead Time 52 Weeks
Voltage – Supply (Vcc/Vdd) 4.5V ~ 5.5V
Switch Type Latched Driver
Number of Outputs 8
Ratio – Input:Output 1:8
Output Configuration Low Side
Output Type N-Channel
Interface SPI
Voltage – Load 45V (Max)
Current – Output (Max) 450mA
Rds On (Typ) 1.5Ohm
  1. As a low-side driver, the E-L9826TR is designed to control the grounding (low side) of connected loads. This configuration is commonly used in automotive applications to control various actuators and devices.
  2. Featuring eight low-side driver channels, the E-L9826TR provides flexibility for controlling multiple loads simultaneously. This is advantageous in automotive applications where numerous actuators or components may require individual control.
  3. The E-L9826TR may include protection features such as overcurrent protection and thermal shutdown. These features enhance the robustness of the device and contribute to its ability to withstand challenging operating conditions.
  4. The E-L9826TR is suitable for a range of automotive applications, including but not limited to powertrain control, body electronics, and safety systems. It can be employed to control various loads within the vehicle, contributing to the overall functionality and performance.
