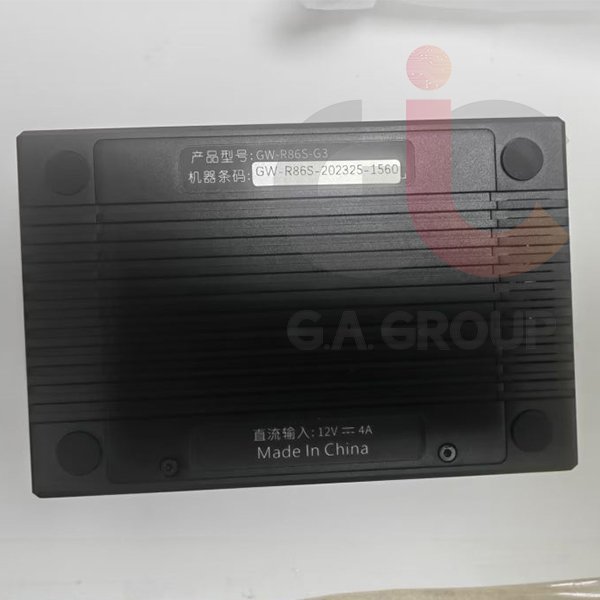

GW-R86S-G3

Competitive Pricing

Hard disk: Built in 128GB EMMC	Extra storage : Support 1*M.2 2280 PCIE +USB disk+TF Card
Network Port: Built-in 3X 2.5GbE Intel I225-V Ethernet+Dual-Port SFP+ 10Gbe Fiber Ethernet	I/O: 2USB3.0+HDMI1+TF1+DC1 port
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

GW-R86S-G3 Specifications

RAM memory	Built-in DDR3 8GB /16GB Optional Remarks: G1=8GB G2=16GB G3=16GB
Operation System	pre-install Openwrt OS, Support Windows, pfsense, Linux（Ubantu).All hardware tested with pfSense, untangle, OPNsense and other popular open-source software solutions
Cooling Method	Built-in 2mini fans+2metal radiators
Working Temp	28-52℃ (In regular environment)
Power Supply	DC12V 4A (Support auto Power-On)
Size&Weight	1197939.5mm Net Weight:1.0 lbs Gross Weight: 1.9 lbs
CPU	The G1/G2 model use Intel@Celeron@Processor N5105 4M Cache,Up to 2.9GHz, TDP 10W The G3 model use Intel@Celeron@Processor N6005 4M Cache, Up to 3.3GHz, TDP 10W Intel® UHD Graphics(450-900Mhz), Support 4K 60Hz display AES-NI hardware support
Spare parts	AC adaptor, Users manual
Packing size	Inner Giftbox 21126cm Outside Carton 24158cm Gross Weight: 1.9 lbs 1pcs/box 20pcs/Carton
Item colors	Regular Color：Black, Grey OEM Colors：Orange, Green, Blue, Red
Leading time	48 hours for samples, 20days for trial order(100-500pcs)
Certifications	CE/RoHs/FCC
Warranty	18months
GW-R86S-G3	Intel@CeleronN6005 CPU+16GB Ram+128GB Storage+32.5g ethernet port+Dual-Port SFP+ 10Gbe Fiber Ethernet Support 1M.2 2280 MVME+ with Built-in Wifi6/BT module+2 antennas

The GW-R86S-G3 is an advanced industrial router and mini computer, designed to serve as a multi-network industrial controller with robust capabilities. This device integrates a high-performance Intel N6005 processor and features optical ports.
