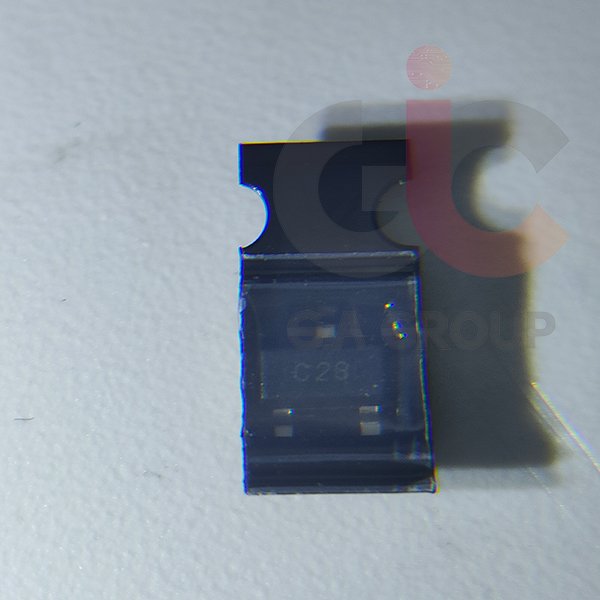

HSMS-2822-TR1G

Competitive Pricing

Part Number: HSMS-2822-TR1G	Manufacturer: Broadcom Limited
In-Stock: 100,009,818	DC: 23+
Description: Dual Series Configuration Schottky Diodes & Rectifiers 1 pF 15V SOT23-3	Datasheets: HSMS-2822-TR1G Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

HSMS-2822-TR1G Specifications

Manufacturer:	Broadcom Limited
Product:	Schottky Diodes
If – Forward Current:	1 A
Vrrm – Repetitive Reverse Voltage:	15 V
Vf – Forward Voltage:	340 mV
Ir – Reverse Current:	100 nA
Mounting Style:	SMD/SMT
Package / Case:	SOT-23
Configuration:	Dual Series
Technology:	Si
Packaging:	Reel
Packaging:	Cut Tape
Minimum Operating Temperature:	– 65 °C
Maximum Operating Temperature:	+ 150 °C
Height:	1.2 mm
Length:	3.13 mm
Width:	1.5 mm

The HSMS-2822-TR1G is a surface-mount Schottky barrier diode manufactured by Broadcom (previously Avago Technologies, part of Hewlett-Packard). This diode is widely used in RF (Radio Frequency) and microwave applications due to its low forward voltage, high switching speed, and low capacitance, making it ideal for signal detection, mixing, and switching in high-frequency circuits.

Applications:

1. RF and Microwave Detectors:
– Used in RF signal detection circuits due to its fast response time and low capacitance, which ensure accurate detection of high-frequency signals.

2. Mixers:
– Ideal for use in frequency mixers, where its low forward voltage and fast switching help mix RF signals with minimal loss.

3. Switching Circuits:
– Utilized in high-speed switching applications where low capacitance and resistance are critical for performance.

4. Clamping and Protection:
– Acts as a clamping diode in protecting sensitive RF circuits from voltage spikes, thanks to its low forward voltage and high-speed response.

5. Low-Level Signal Rectification:
– Suitable for rectifying small signal levels in RF circuits, due to its low threshold voltage.
