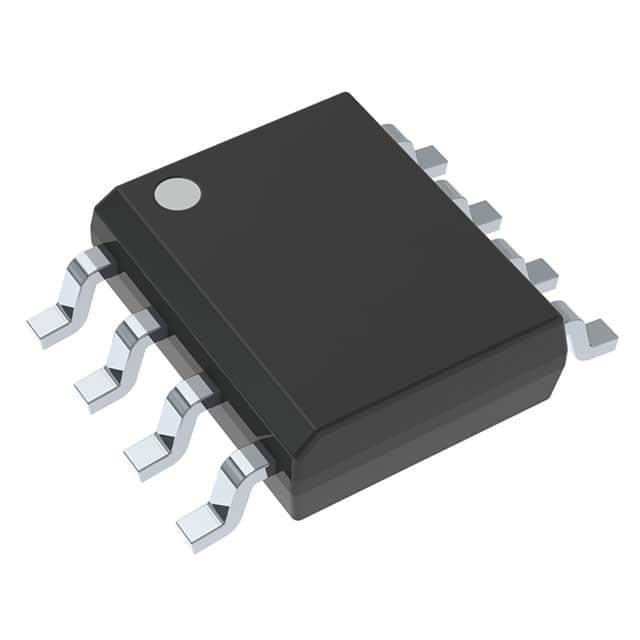

LM258DR
Manufacturer Part Number: LM258DR | Manufacturer / Brand: Texas Instruments |
Part of Description: General Purpose Amplifier 2 Circuit 8-SOIC |
Lead Free Status / RoHS Status:
![]() |
Shipment Way: DHL/Fedex/TNT/UPS | Datasheets: |
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed
|
Product parameters
Manufacturer | Texas Instruments |
Manufacturer Standard Lead Time | 6 Weeks |
Package | Tape & Reel (TR),Cut Tape (CT) |
Description | IC OPAMP GP 2 CIRCUIT 8SOIC |
Product Status | Active |
Number of Circuits | 2 |
Operating Temperature | -25°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | LM258 |
Amplifier Type | General Purpose |
Slew Rate | 0.3V/µs |
Current – Input Bias | 20 nA |
Voltage – Input Offset | 3 mV |
Current – Supply | 500µA (x2 Channels) |
Current – Output / Channel | 40 mA |
Voltage – Supply Span (Min) | 3 V |
Voltage – Supply Span (Max) | 32 V |
Gain Bandwidth Product | 700 kHz |
Texas Instruments LM324DR is a general-purpose operational amplifier integrated circuit. It consists of two amplifier circuits and is available in an 8-SOIC (Small Outline Integrated Circuit) package. The gain bandwidth product of this IC is 700 kHz.
