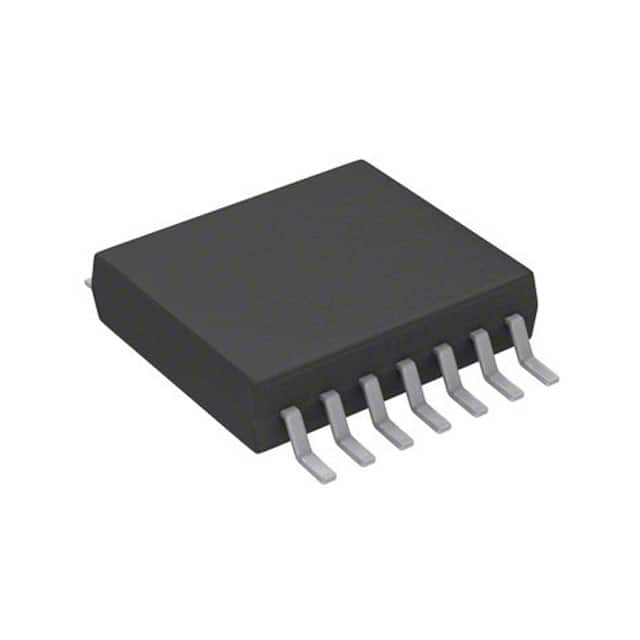

LM5156HQPWPRQ1

Manufacturer Part Number: LM5156HQPWPRQ1 Manufacturer / Brand: Texas Instruments
Part of Description: Boost, Flyback, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 14-HTSSOP Lead Free Status / RoHS Status: table_imgLead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Texas Instruments
Description 2.2MHZ WIDE VIN AUTOMOTIVE NON-S
Series Automotive, AEC-Q100
Package Tape & Reel (TR), Cut Tape (CT)
Product Status Active
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C
Package / Case 14-PowerTSSOP (0.173″, 4.40mm Width)
Supplier Device Package 14-HTSSOP
Base Product Number LM5156
Manufacturer Standard Lead Time 6 Weeks
Voltage – Supply (Vcc/Vdd) 2.97V ~ 60V
Number of Outputs 1
Output Configuration Positive
Output Type Transistor Driver
  • Operating at a frequency of 2.2 MHz, the LM5156HQPWPRQ1 enables efficient power conversion with high-speed switching. This feature is advantageous for applications where a compact and lightweight design, along with minimal energy loss, is crucial.
  • The inclusion of dual random spread spectrum capability contributes to minimizing electromagnetic interference (EMI) in the system. This is especially valuable in applications where electromagnetic compatibility is a critical consideration.
  • Housed in a 14-HTSSOP package, the LM5156HQPWPRQ1 strikes a balance between compact form factor and effective thermal dissipation. This makes it suitable for designs where both space constraints and thermal management are priorities.
