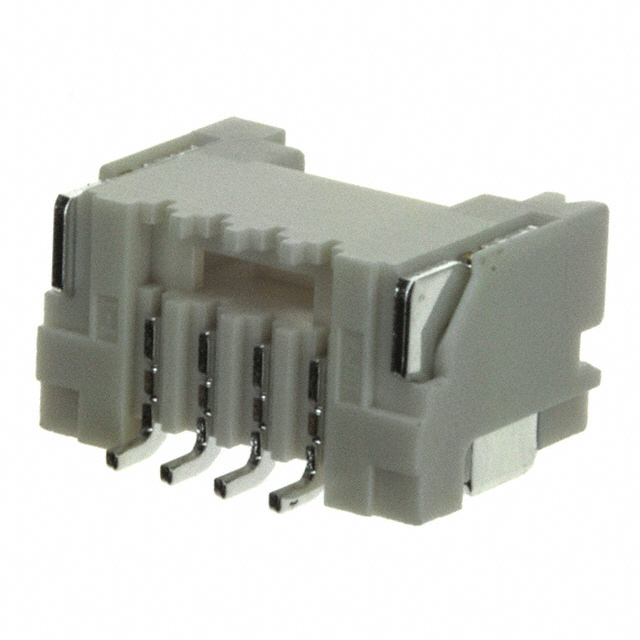

SM04B-ZESS-TB

Manufacturer Part Number: SM04B-ZESS-TB(LF)(SN)	Manufacturer / Brand: JST Sales America Inc.
Part of Description: Connector Header Surface Mount, Right Angle 4 position 0.059" (1.50mm)	Lead Free Status / RoHS Status: Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS	Datasheets: SM04B-ZESS-TB Datasheet
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed

Product parameters

Manufacturer	JST Sales America Inc.
Series	ZE
Package	Tape & Reel (TR), Cut Tape (CT)
Description	CONN HEADER SMD R/A 4POS 1.5MM
Product Status	Active
Manufacturer Standard Lead Time	16 Weeks
Operating Temperature	-25°C ~ 85°C
Mounting Type	Surface Mount, Right Angle
Base Product Number	SM04B-ZE
Features	Solder Retention

The pitch of the SM04B-ZESS-TB connector header is 0.059 inches (1.50mm), indicating the distance between the centerlines of adjacent contacts. This pitch size ensures compatibility with standard PCB layouts and allows for reliable signal transmission.
The connector header is engineered to provide a secure and reliable electrical connection between the PCB and mating connectors. It features precision-machined contacts and robust housing construction to withstand mechanical stress and environmental factors.
With its compact form factor, the SM04B-ZESS-TB connector header helps conserve PCB real estate, making it ideal for applications where space optimization is crucial. Its low-profile design also enhances the overall aesthetics of the electronic device.
The SM04B-ZESS-TB connector header finds applications across various industries, including consumer electronics, telecommunications, automotive, industrial automation, and medical devices. It is suitable for board-to-board, board-to-wire, or wire-to-wire connections.
