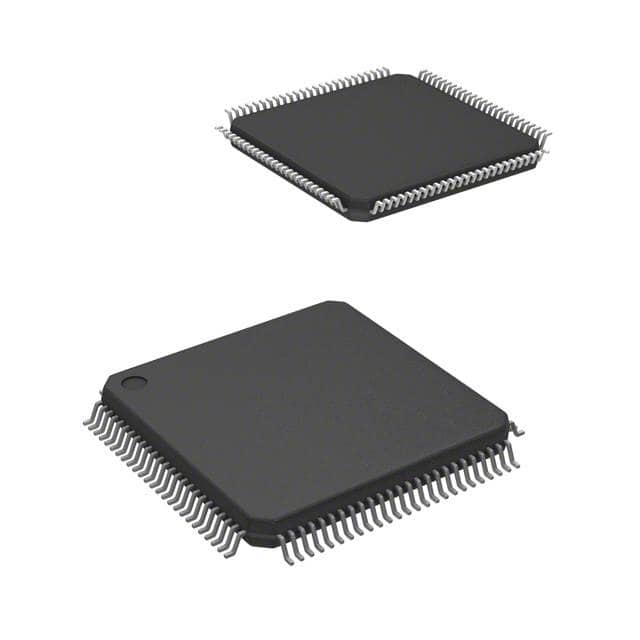

STM32F407VGT6

Manufacturer Part Number: STM32F407VGT6 Manufacturer / Brand: STMicroelectronics
Part of Description: ARM® Cortex®-M4 STM32F4 Microcontroller IC 32-Bit Single-Core 168MHz 1MB (1M x 8) FLASH 100-LQFP (14x14) Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer STMicroelectronics
Description IC MCU 32BIT 1MB FLASH 100LQFP
Series STM32F4
Package Tray
Product Status Active
Number of I/O 82
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 100-LQFP
Supplier Device Package 100-LQFP (14×14)
Base Product Number STM32F407
Manufacturer Standard Lead Time 22 Weeks
Core Processor ARM® Cortex®-M4
Core Size 32-Bit Single-Core
Speed 168MHz
Connectivity CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
RAM Size 192K x 8
Voltage – Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 16x12b; D/A 2x12b
Oscillator Type Internal
  1. With a generous 1024 KB (1 MB) of flash memory, the STM32F407VGT6 provides ample storage for program code and firmware.
  2. Operating at a clock speed of 168 MHz, the STM32F407VGT6 delivers rapid processing capabilities. The high clock frequency enables swift execution of instructions, making it suitable for applications demanding real-time responsiveness.
  3. Featuring 192 KB of Static Random-Access Memory (SRAM), this microcontroller provides a sizable working memory for data storage and manipulation. Sufficient SRAM is crucial for handling variables, buffers, and temporary data during program execution.
  4. The STM32F407VGT6 includes advanced control peripherals such as timers, PWM controllers, and motor control features. These capabilities make it well-suited for applications in motor control, power management, and other precision control systems.
  5. The combination of computational power, memory resources, and connectivity options positions the STM32F407VGT6 for deployment in diverse domains, including industrial automation, consumer electronics, automotive systems, and more.
