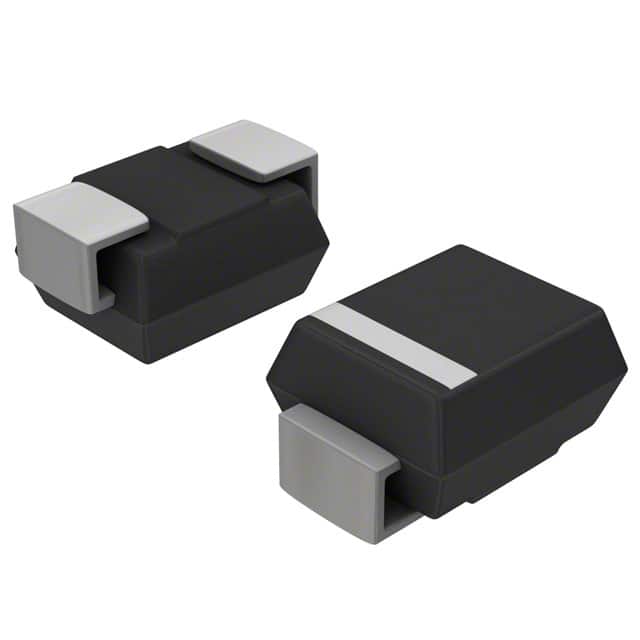

STPS1H100A

Manufacturer Part Number: STPS1H100A Manufacturer / Brand: STMicroelectronics
Part of Description: Diode 100 V 1A Surface Mount SMA (DO-214AC) Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer STMicroelectronics
Manufacturer Standard Lead Time 45 Weeks
Description DIODE SCHOTTKY 100V 1A SMA
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Active
Base Product Number STPS1
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Mounting Type Surface Mount
  • The STPS1H100A has a forward current rating of 1.0 Amp, making it suitable for various low to moderate-power applications.
    The voltage rating of 100 Volts indicates its capability to handle voltages up to 100V in reverse-biased conditions.
  • Being a Schottky diode, it features a metal-semiconductor junction, offering low forward voltage drop and fast switching characteristics. This makes it well-suited for applications requiring efficient rectification.
  • The SMD/SMT (Surface Mount Device/Surface Mount Technology) mounting style makes the STPS1H100A suitable for compact and space-efficient electronic designs. It can be easily mounted on the surface of a printed circuit board (PCB).
  • With a dimension of 2.95 mm, the diode is designed to occupy minimal space on the PCB, contributing to the overall compactness of electronic devices.
