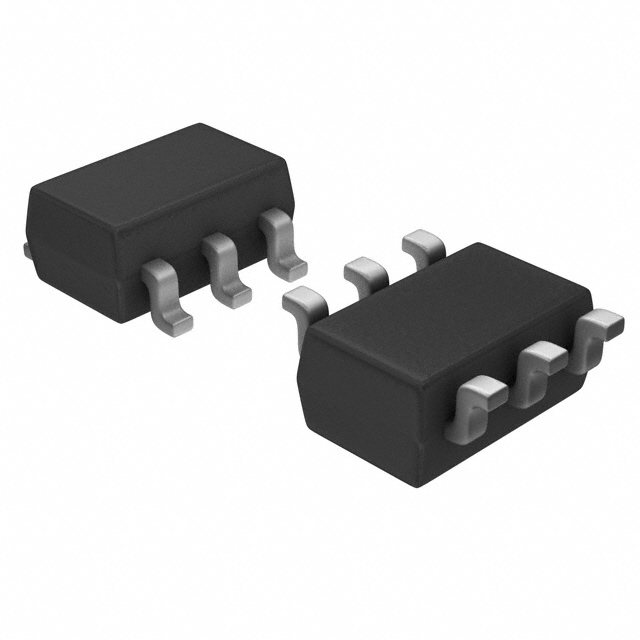

TPD4E1U06DBVR

Manufacturer Part Number: TPD4E1U06DBVR Manufacturer / Brand: Texas Instruments
Part of Description: 15V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6 Lead Free Status / RoHS Status: table_img Lead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Texas Instruments
Package Tape & Reel (TR), Cut Tape (CT)
Description TVS DIODE 5.5VWM 15VC SOT23-6
Product Status Active
Manufacturer Standard Lead Time 6 Weeks
Operating Temperature -40°C ~ 125°C (TA)
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage – Reverse Standoff (Typ) 5.5V (Max)
Voltage – Breakdown (Min) 6.5V
Voltage – Clamping (Max) @ Ipp 15V (Typ)
Current – Peak Pulse (10/1000µs) 3A (8/20µs)
Power – Peak Pulse 45W
Power Line Protection Yes
Applications Ethernet, HDMI
Mounting Type Surface Mount
Package / Case SOT-23-6
Supplier Device Package SOT-23-6
Base Product Number TPD4E1
  • The TPD4E1U06DBVR features four independent ESD protection channels. This configuration allows it to provide comprehensive protection for multiple signal or data lines, making it particularly suitable for applications with multi-line interfaces.
  • Engineered for high-speed applications, this protection device ensures the integrity of signals transmitted over fast data and communication lines. It effectively clamps voltages induced by ESD events, preventing damage to downstream components.
  • The primary function of the TPD4E1U06DBVR is to protect sensitive electronic circuits from electrostatic discharge events. It accomplishes this by diverting excess energy from ESD strikes away from the protected circuit, ensuring that the voltage does not exceed safe operating levels.
