TPS92692QPWPRQ1

Manufacturer Part Number: TPS92692QPWPRQ1 Manufacturer / Brand: Texas Instruments
Part of Description: LED Driver IC 1 Output DC DC Controller Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 20-HTSSOP Lead Free Status / RoHS Status: table_imgLead free / RoHS Compliant
Shipment Way: DHL/Fedex/TNT/UPS Datasheets:
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed

Product parameters

Manufacturer Texas Instruments
Description IC LED DRIVER CTRLR PWM 20HTSSOP
Series Automotive, AEC-Q100
Package Tape & Reel (TR), Cut Tape (CT)
Product Status Active
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C (TA)
Package / Case 20-PowerTSSOP (0.173″, 4.40mm Width)
Supplier Device Package 20-HTSSOP
Base Product Number TPS92692
Manufacturer Standard Lead Time 6 Weeks
Number of Outputs 1
  1. The TPS92692QPWPRQ1 is engineered to provide high-precision control over LED illumination. This is essential in automotive lighting applications where consistent and accurate lighting performance is crucial for safety and aesthetics.
  2. Featuring an internal PWM generator, this LED controller streamlines the process of pulse-width modulation. This internal functionality enhances the efficiency and accuracy of LED brightness control, contributing to optimal lighting performance.

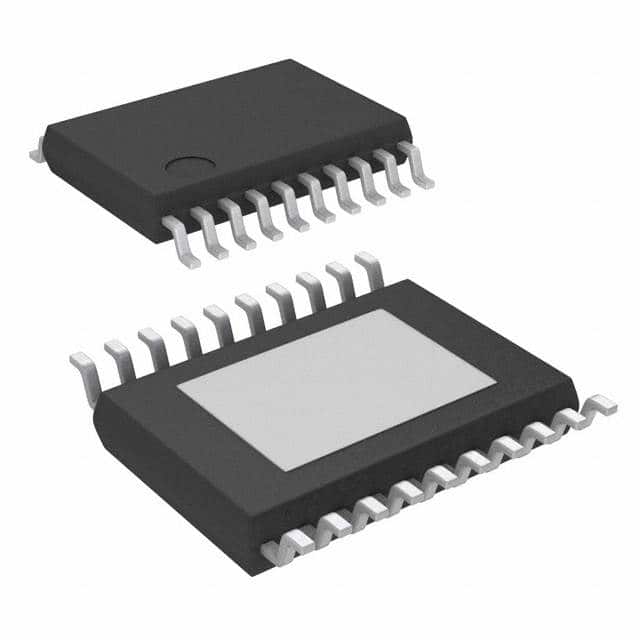

  3. Housed in a 20-HTSSOP package, the TPS92692QPWPRQ1 strikes a balance between a compact form factor and effective thermal dissipation.
  4. With an operational temperature range spanning from -40 to 125 degrees Celsius, the TPS92692QPWPRQ1 ensures reliable performance across the diverse temperature conditions experienced in automotive environments.
