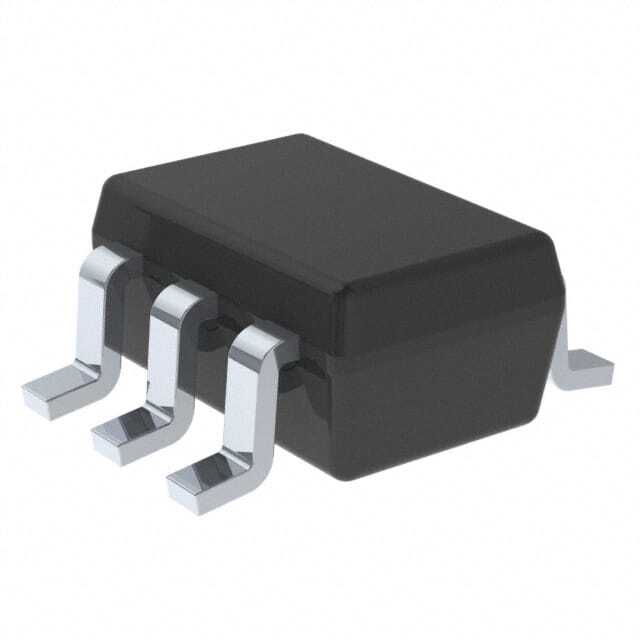

TS5A9411DCKR
Manufacturer Part Number: TS5A9411DCKR | Manufacturer / Brand: Texas Instruments |
Part of Description: 1 Circuit IC Switch 2:1 9Ohm SC-70-6 | Lead Free Status / RoHS Status: Lead free / RoHS Compliant |
Shipment Way: DHL/Fedex/TNT/UPS | Datasheets: |
100% original and authentic 100% test report if single part is over 500USD 100% damaged replacement guaranteed |
Product parameters
Manufacturer | Texas Instruments |
Manufacturer Standard Lead Time | 6 Weeks |
Package | Tape & Reel (TR), Cut Tape (CT) |
Description | IC SWITCH SPDT X 1 9OHM SC70-6 |
Product Status | Active |
Switch Circuit | SPDT |
Multiplexer/Demultiplexer Circuit | 2:1 |
Number of Circuits | 1 |
On-State Resistance (Max) | 9Ohm |
Channel-to-Channel Matching (ΔRon) | 30mOhm |
Voltage – Supply, Single (V+) | 2.25V ~ 5.5V |
Switch Time (Ton, Toff) (Max) | 9ns, 7ns |
-3db Bandwidth | 100MHz |
Charge Injection | 12.5pC |
Channel Capacitance (CS(off), CD(off)) | 3.5pF |
Current – Leakage (IS(off)) (Max) | 500pA |
Crosstalk | -85dB @ 1MHz |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 6-TSSOP, SC-88, SOT-363 |
Supplier Device Package | SC-70-6 |
Base Product Number | TS5A9411 |
Texas Instruments TS5A9411DCKR is a 1-circuit integrated circuit switch designed with a 2:1 configuration. The switch has a resistance of 9 ohms and is available in a SC-70-6 package.
