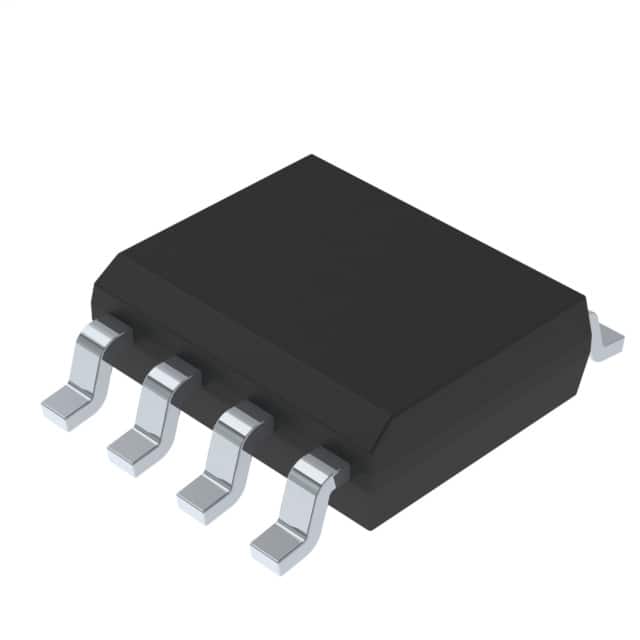

TSV622AIDT
Manufacturer Part Number: TSV622AIDT | Manufacturer / Brand: STMicroelectronics |
Part of Description: CMOS Amplifier 2 Circuit Rail-to-Rail 8-SOIC |
Lead Free Status / RoHS Status:
![]() |
Shipment Way: DHL/Fedex/TNT/UPS | Datasheets: |
100% original and authentic
100% test report if single part is over 500USD
100% damaged replacement guaranteed
|
Product parameters
Manufacturer | STMicroelectronics |
Manufacturer Standard Lead Time | 25 Weeks |
Description | IC CMOS 2 CIRCUIT 8SOIC |
Package | Tape & Reel (TR), Cut Tape (CT) |
Product Status | Active |
Output Type | Rail-to-Rail |
Operating Temperature | -40°C ~ 125°C |
Base Product Number | TSV622 |
Package / Case | 8-SOIC (0.154″, 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Mounting Type | Surface Mount |
Amplifier Type | CMOS |
Number of Circuits | 2 |
Slew Rate | 0.14V/µs |
Gain Bandwidth Product | 420 kHz |
Current – Input Bias | 1 pA |
Voltage – Input Offset | 800 µV |
Current – Supply | 29µA |
Current – Output / Channel | 74 mA |
Voltage – Supply Span (Min) | 1.5 V |
Voltage – Supply Span (Max) | 5.5 V |
- The TSV622AIDT integrates two independent operational amplifiers within a single package. This dual configuration is advantageous in applications requiring multiple amplification stages or dual-channel signal processing.
- One of the primary features of the TSV622AIDT is its low power consumption, drawing only 29 microamperes (29uA) of current.
- The TSV622AIDT supports rail-to-rail input and output operation. This feature allows the op-amp to handle signals that swing close to both the positive and negative supply rails, maximizing the dynamic range of amplified signals.
